Model:
- T350

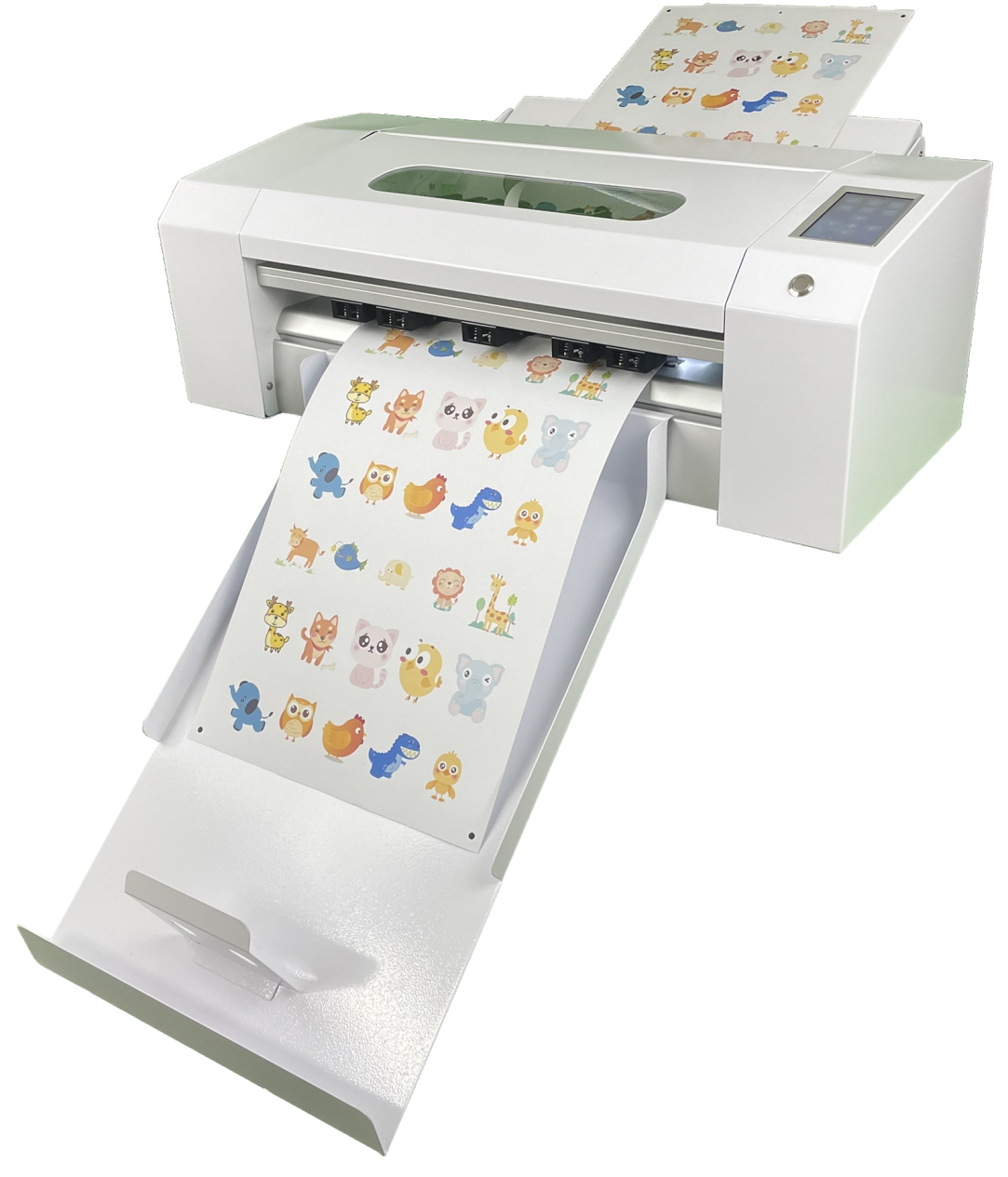

Label Die-Cutting Machine
Descriptions
This label die-cutting machine delivers precision and efficiency. Featuring an ARM system, it ensures stable, high-precision cutting. The upgraded paper feeding system handles 80-400g copperplate paper smoothly, minimizing sticking. With robust anti-interference design and versatile software compatibility (CorelDRAW, AI, AIDCUT), it’s a reliable choice for professional label production.
Precision Movement Control
Double row pressure wheels combined with double row high-precision paper grabbing wheels ensure balanced paper movement without deviation.
Enhanced Paper Feed Efficiency
Upgraded paper feeding system with high feeding force, suitable for 80-400g of copperplate paper, smooth feeding, and less prone to sticking.
Stable and Reliable Operation
The fuselage adopts anti-interference design, strong shielding ability, and the lettering is more stable and reliable.
Versatile Software Compatibility
Supports Windows system and can output using software such as CorelDRAW / AI / AIDCUT.
Application
Light box film cutting
Traffic sign
Thermal transfer
Shaped label
Car sticker
Glass/stone tablet sandblasting sticker
Specifications
| Model | T350 |
| Mainboard | 32-bit ARM7 CPU, High-speed CACHE memory / Stepping motor |
| Paper feeding width | 120–350mm |
| Maximum cutting width | 320mm |
| Maximum cutting speed | 800mm/s |
| Maximum cutting thickness | 80g–400g (white cardboard and copperplate paper) / 1mm |
| Cutting force | 50–800g |
| Operation mode | Roller type / single / multiple sheet automatic feeding / segmented cutting |
| Mechanical precision | 0.02mm |
| Interface | USB / Network interface / U Disk |
| Positioning form | Camera positioning |
| Power / consumption | AC110V /220V±10%, 50Hz/60Hz |
| Package size/Gross weight | 760×535×415mm / 27kg |
